Mae Hangzhou Ocean Industry Co, Ltd yn un o brif wneuthurwyr a chyflenwyr gerau meitr dur turio stoc-b cyfres yn Tsieina. Croeso i gadwyni diwydiannol swmp cyfanwerthu gwydn a rhannau trawsyrru pŵer a wneir yn Tsieina yma o'n ffatri. Mae'r holl gynhyrchion wedi'u haddasu o ansawdd uchel a phris cystadleuol.
Mae'r gyfres Stock Bore Steel Miter Gears B yn sbardun dur a gerau helical, a ddefnyddir yn bennaf i drosglwyddo pŵer a mudiant rhwng dwy siafft cylchdroi croestorri mewn cymhareb 1:1. Wedi'i wneud yn gyffredinol o ddur carbon, mae ganddo nodweddion caledwch uchel, cryfder uchel, a gwrthiant gwisgo da.
Defnyddir y gerau hyn yn helaeth mewn systemau mecanyddol sy'n gofyn am drosglwyddo pŵer a mudiant rhwng dwy echelin fertigol. Oherwydd eu dyluniad effeithlon, maent yn cynhyrchu llai o ffrithiant na gerau helical, a thrwy hynny wella effeithlonrwydd cyffredinol. Er mwyn sicrhau gosodiad cywir a defnydd hirdymor, argymhellir bod cwsmeriaid yn dilyn y canllawiau gosod a ddarperir gan y gwneuthurwr ac yn archwilio a chynnal traul y gerau yn rheolaidd. Mae'r gerau hyn fel arfer ar gael mewn stoc a gellir eu danfon yn gyflym.
I grynhoi, mae cyfres Stock Bore Steel Miter Gears B yn gynnyrch gêr perfformiad uchel ac effeithlon sy'n addas ar gyfer cymwysiadau diwydiannol amrywiol, yn enwedig mewn sefyllfaoedd lle mae angen rheolaeth fanwl gywir ar bŵer a mudiant.
Paramedr
Ystod cynnyrch:
| Safonau | Math o Gyfres | Ystod Maint |
| DIN | cyfres B (1:1.5) | 20 gradd, Mod.1.5-5 |
| cyfres B (1:2) | 20 gradd, Mod.1.5-5 | |
| cyfres B (1:2.5) | 20 gradd, Mod.1.5-5 | |
| cyfres B (1:3) | 20 gradd, Mod.1.5-5 | |
| cyfres B (1:3.5) | 20 gradd, Mod.1.5-5 | |
| cyfres B (1:4) | 20 gradd, Mod.1.5-5 |
Ongl pwysau 20 gradd

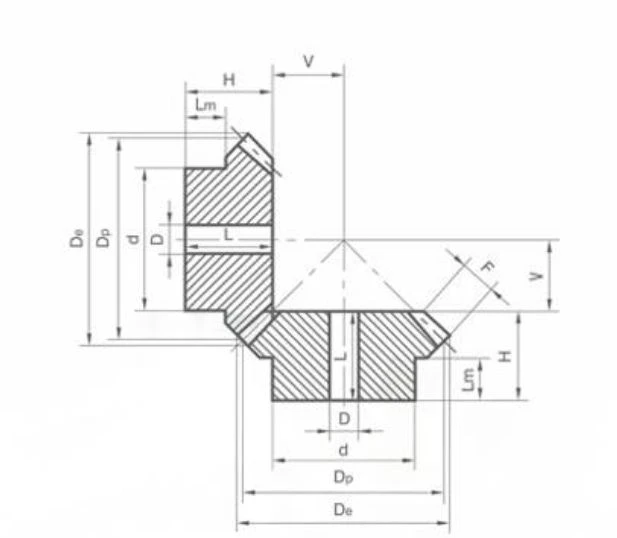

Teipiwch-B 1:1
| M | Z | De | Dp | H | F | d | D | V | Lm |
| 1.5 | T6 | 26.1 | 24.00 | 18.9 | 6 | 20.3 | 8 | 7.10 | 12 |
| 19 | 30.6 | 28.5 | 721.3 | 7 | 20.3 | 8 | 8.70 | 12 | |
| 22 | 35.1 | 33.0 | 22.5 | 7.5 | 25.3 | 8 | 10.50 | 12 | |
| 26 | 41.1 | 39.0 | 23.2 | 8.5 | 28.3 | 8 | 12.80 | 12 | |
| 30 | 47.1 | 45.0 | 27.2 | 10 | 30.3 | 12 | 14.80 | 12 | |
| 2 | 16 | 34.8 | 32.0 | 23.5 | 8 | 25.3 | 8 | 9.50 | 14 |
| 19 | 40.8 | 38.0 | 24.2 | 9 | 25.3 | 8 | 11.80 | 12 | |
| 22 | 46.8 | 44.0 | 27.9 | 10 | 30.3 | 12 | 14.10 | 14 | |
| 26 | 54.8 | 52.0 | 31.4 | 12 | 35.3 | 12 | 16.60 | 14 | |
| 30 | 62.8 | 60.0 | 34.1 | 13 | 40.3 | 14 | 19.90 | 17 | |
| 2.5 | 16 | 43.5 | 40.0 | 28.T | 10 | 30.3 | 12 | 11. 90 | 15 |
| 19 | 51.0 | 47.5 | 27.1 | 11 | 35.3 | 12 | 14.90 | 13 " | |
| 22 | 58.5 | 55.0 | 30.1 | 12 | 45.3 | 16 | 17.90 | 16 | |
| 26 | 68.5 | 65.0 | 33.2 | 15 | 45.3 | 16 | 20.80 | 16 | |
| 30 | 78.5 | 75.0 | 39 | 16 | 50.3 | 16 | 25.00 | 20 | |
| 3 | 16 | 52.5 | 48.0 | 31.7 | 12 | 40.3 | 12 | 14.30 | 18 |
| 19 | 61.2 | 57.0 | 36 | 13 | 40.3 | 14 | 18.00 | 17 | |
| 22 | 70.2 | 66.0 | 36.9 | 15 | 50.3 | 16 | 21.10 | 17 | |
| 26 | 82.2 | 78.0 | 38.4 | 17 | 50.3 | 16 | 25.60 | 18 | |
| 30 | 94.2 | 90.0 | 43.8 | 19 | 60.3 | 20 | 30.20 | 22 | |
| 3.5 | 16 | 60.9 | 56.0 | 36.4 | 14 | 45.3 | 16 | 16.60 | 20 |
| 19 | 71.5 | 66.54 | 37.8 | 15 | 50.3 | 18 | 21.00 | 19 | |
| 22 | 81.9 | 77.0 | 39.1 | 17 | 55.3 | 20 | 24.90 | 18 | |
| 26 | 96.0 | 91.0 | 43.35 | 20 | 62.3 | 20 | 29.70 | 20 | |
| 30 | 110.0 | 105.0 | 47.1 | 23 | 70.3 | 20 | 34.90 | 22 | |
| 4 | 16 | 69.7 | 64.0 | 44.3 | 15 | 50.3 | 16 | 19.70 | 25 |
| 19 | 81.7 | 76.0 | 44.4 | 18 | 55.3 | 20 | 23.60 | 22 | |
| 22 | 93.7 | 88.0 | 45.9 | 20 | 60.3 | 20 | 28.10 | 22 | |
| 26 | 109.7 | 104.0 | 48 | 25 | 70.3 | 20 | 34.00 | 22 | |
| 30 | 125.7 | 120.0 | 54.2 | 26 | 80.3 | 25 | 39.80 | 25 | |
| 4.5 | 16 | 78.4 | 72.0 | 46.3 | 17.5 | 55.3 | 20 | 21.70 | 25 |
| 19 | 91.8 | 85.5 | 49 | 20 | 62.3 | 20 | 26.57 | 25 | |
| 22 | 105.3 | 99.0 | 50.1 | 22 | 70.3 | 20 | 31.90 | 25 | |
| 26 | 123.0 | 117.0 | 54.7 | 25 | 75.3 | 20 | 38.60 | 26 | |
| 30 | 141.4 | 135.0 | 60 | 29 | 80.3 | 25 | 45.00 | 28 | |
| 5 | 16 | 87.1 | 80.0 | 48.9 | 18 | 60.3 | 20 | 25.10 | 25 |
| 19 | 102.1 | 95.0 | 52.2 | 22 | 60.3 | 20 | 29.80 | 25 | |
| 22 | 117.1 | 110.0 | 58.2 | 24 | 80.3 | 25 | 35.80 | 30 | |
| 26 | 137.1 | 130.0 | 62.7 | 29 | 80.3 | 25 | 42.30 | 30 | |
| 30 | 157.1 | 150.0 | 68.9 | 32 | 80.3 | 30 | 50.10 | 35 |
Teipiwch-B 1:1.5
| M | Z | De | Dp | H | F | d | D | V | L | Lm | s |
| 1.5 | 16 | 27.1 | 24 | 20.3 | 8 | 20.3 | 8 | 10.7 | 11.8 | ||
| 24 | 37.2 | 36 | 24.9 | 8 | 28.3 | 8 | 7.1 | 22.7 | 16 | 22 | |
| 2 | 16 | 36.2 | 32 | 25.2 | 10 | 25.3 | 8 | 14.8 | 13.8 | ||
| 24 | 49.7 | 48 | 27.2 | 10 | 32.3 | 8 | 9.8 | 24.7 | 16 | 2.5 | |
| 2.5 | 16 | 45.2 | 40 | 30.8 | 13 | 32.3 | 12 | 18.2 | 16.4 | ||
| 24 | 62.1 | 60 | 34 | 13 | 45.3 | 16 | 12.0 | 30.8 | 20 | 3.2 | |
| 3 | 16 | 543 | 48 | 324 | 14.5 | 40.3 | 12 | 22.6 | 16.4 | ||
| 24 | 74.5 | 72 | 36.2 | 14.5 | 55.3 | 16 | 14.8 | 32 | 20 | 4.2 | |
| 3.5 | 16 | 63.3 | 56 | 40.4 | 18 | 45.3 | 16 | 25.6 | 20.4 | ||
| 24 | 86.9 | 84 | 44.2 | 18 | 55.3 | 20 | 16.8 | 40 | 25 | 4.2 | |
| 4 | 16 | 72.4 | 64 | 46.8 | 18 | 503 | 16 | 31.2 | 25.4 | ||
| 24 | 99.3 | 96 | 45.5 | 18 | 60.3 | 20 | 20.5 | 40 | 25 | 5.5 | |
| 4.5 | 16 | 81.4 | 72 | 47.6 | 20 | 60.3 | 20 | 35.4 | 25.1 | ||
| 24 | 111.7 | 108 | 57.8 | 20 | 80.3 | 25 | 23.2 | 51.3 | 35 | 6.5 | |
| 5 | 16 | 90.5 | 80 | 54.1 | 24 | 60.3 | 25 | 37.9 | 25.4 | ||
| 24 | 124.1 | 120 | 61.1 | 24 | 80.3 | 30 | 24.9 | 54.5 | 35 | 6.6 |

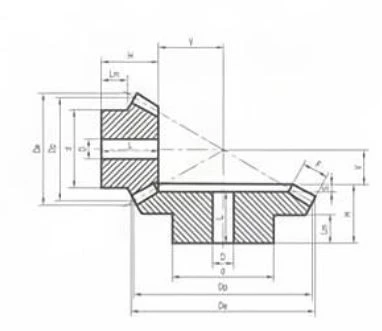

Teipiwch-B 1:2
| M | Z | De | Dp | H | F | d | D | V | L | Lm | S |
| 1.5 | 15 | 26.1 | 22.5 | 21.1 | 9 | 19.3 | 8 | 13.9 | 11.9 | ||
| 30 | 45.9 | 45.0 | 25.2 | 9 | 32.3 | 8 | 6.8 | 23 | 16 | 2.2 | |
| 2 | 15 | 34.8 | 30.0 | 26 | 11.5 | 25.3 | 8 | 19.0 | 14.1 | ||
| 30 | 61.2 | 60.0 | 29.8 | 11.5 | 40.3 | 14 | 9.2 | 26.8 | 18 | 3 | |
| 2.5 | 15 | 43.5 | 37.5 | 31.8 | 15 | 32.3 | 12 | 23.2 | 16.2 | ||
| 30 | 76.5 | 75.0 | 33.7 | 15 | 45.3 | 16 | 11.3 | 30 | 20 | 3.7 | |
| 3 | 15 | 52.2 | 45.0 | 37.3 | 17 | 40.3 | 12 | 28.7 | 19.9 | ||
| 30 | 91.8 | 90.0 | 42.1 | 17 | 55.3 | 16 | 13.9 | 38 | 25 | 4.1 | |
| 3.5 | 15 | 60.9 | 52.5 | 46.1 | 20.5 | 45.3 | 16 | 32.9 | 24.7 | ||
| 30 | 107.1 | 105.0 | 45 | 20.5 | 60.3 | 20 | 16.0 | 40 | 25 | 5 | |
| 4 | 15 | 69.6 | 60.0 | 48.6 | 22.5 | 50.3 | 20 | 38.4 | 24.6 | ||
| 30 | 122.3 | 120.0 | 57.3 | 22.5 | 80.3 | 25 | 18.7 | 51.9 | 35 | 5.4 | |
| 4.5 | 15 | 78.3 | 67.5 | 51.4 | 26 | 60.3 | 20 | 42.6 | 24.7 | ||
| 30 | 137.6 | 135.0 | 60.3 | 26 | 80.3 | 30 | 20.7 | 54.3 | 35 | 6 | |
| 5 | 15 | 87.0 | 75.0 | 57.6 | 30 | 60.3 | 25 | 46.4 | 25.3 | ||
| 30 | 152.9 | 150.0 | 62.5 | 30 | 80.3 | 30 | 22.5 | 56 | 35 | 6.5 |

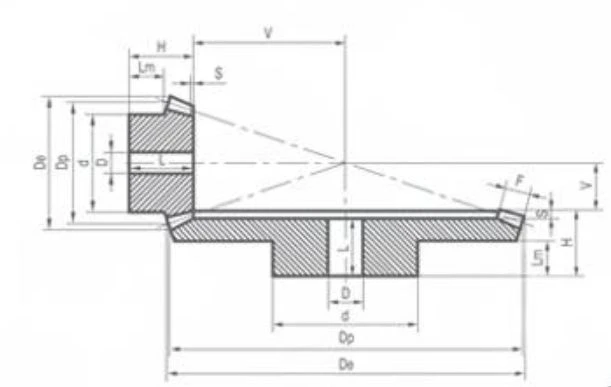

Teipiwch-B 1:2.5
| M | Z | De | Dp | H | F | d | D | V | L | Lm | S |
| 1.5 | 16 | 27.9 | 24 | 24.2 | 11.5 | 20.3 | 8 | 18.8 | 12.3 | ||
| 40 | 60.7 | 60 | 27.8 | 11.5 | 40.3 | 14 | 7.2 | 25.5 | 18 | 2.3 | |
| 2 | 16 | 37.2 | 32 | 29.6 | 15 | 25.3 | 8 | 25.4 | 13.7 | ||
| 40 | 80.9 | 80 | 32.4 | 15 | 45.3 | 16 | 9.6 | 29 | 20 | 3.4 | |
| 2.5 | 16 | 46.4 | 40 | 38.4 | 19 | 32.3 | 12 | 31.6 | 18.5 | ||
| 40 | 101.1 | 100 | 39.8 | 19 | 55.3 | 16 | 12.2 | 35.9 | 25 | 3.9 | |
| 3 | 16 | 55.7 | 48 | 41.9 | 21.5 | 40.3 | 16 | 39.1 | 19.6 | ||
| 40 | 121.4 | 120 | 47.9 | 21.5 | 60.3 | 20 | 15.1 | 44 | 30 | 3.9 | |
| 3.5 | 16 | 65.0 | 56 | 49.1 | 22.6 | 45.3 | 20 | 47.9 | 25 | ||
| 40 | 141.6 | 140 | 54.6 | 22.6 | 80.3 | 25 | 18.4 | 50 | 35 | 4.6 | |
| 4 | 16 | 74.3 | 64 | 52.5 | 26 | 55.3 | 20 | 54.5 | 25.3 | ||
| 40 | 161.8 | 160 | 57 | 26 | 80.3 | 30 | 21.0 | 50.5 | 35 | 6.5 | |
| 4.5 | 16 | 83.6 | 72 | 56.3 | 30 | 60.3 | 25 | 60.7 | 24.6 | ||
| 40 | 182.1 | 180 | 59.7 | 87 | 80.3 | 30 | 23.3 | 53 | 35 | 6.7 | |
| 5 | 16 | 92.9 | 80 | 65.4. | 32 | 60.3 | 25 | 68.6 | 30.1 | ||
| 40 | 202.3 | 200 | 65.7 | 32 | 90.3 | 30 | 26.3 | 58.3 | 40 | 7.4 |

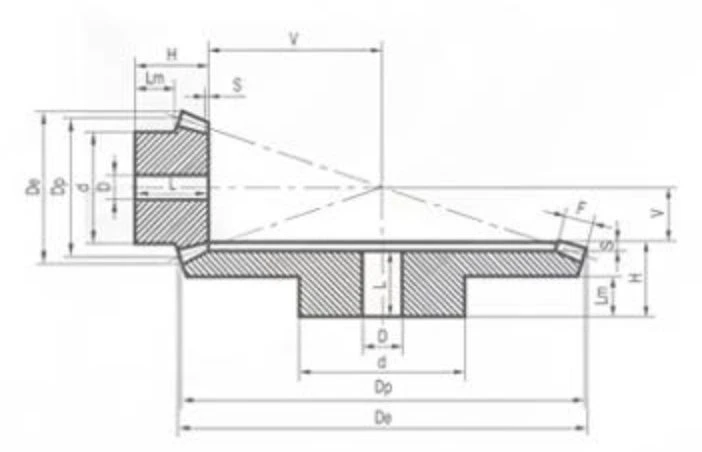

Teipiwch-B 1:3
| M | Z | De | Dp | H | F | d | D | V | L | Lm | S |
| 1.5 | 15 | 26.5 | 22.5 | 22.6 | 10.5 | 19.3 | 8 | 23.4 | 11.7 | ||
| 45 | 68.1 | 67.5 | 29.6 | 10.5 | 45.3 | 14 | 7.4 | 27.2 | 20 | 2.4 | |
| 2 | 15 | 35.4 | 30 | 28.9 | 14 | 25.3 | 8 | 31.1 | 14.2 | ||
| 45. | 90.8 | 90 | 32.1 | 14 | 45.3 | 16 | 9.9 | 28.4 | 20 | 3.7 | |
| 2.5 | 15 | 44.1 | 37.5 | 34.6 | 18 | 32.3 | 12 | 38.4 | 15.9 | ||
| 45 | 113.4 | 112.5 | 39.7 | 18 | 60.3 | 20 | 12.3 | 35.3 | 25 | 4.4 | |
| 3 | 15 | 53.0 | 45 | 41.3 | 21 | 40.3 | 16 | 46.7 | 19.7 | ||
| 45 | 136.1 | 135 | 47.2 | 21 | 60.3 | 25 | 14.8 | 42 | 30 | 5.2 | |
| 3.5 | 15 | 61.9 | 52.5 | 49.6 | 23.5 | 45.3 | 20 | 55.4 | 25 | ||
| 45 | 158.8 | 157.5 | 54.4 | 23.5 | 80.3 | 25 | 17.6 | 48.6 | 35 | 5.8 | |
| 4 | 15 | 70.7 | 60 | 54.3 | 27.5 | 50.3 | 20 | 62.7 | 25.4 | ||
| 45 | 181.5 | 180 | 57 | 27.5 | 80.3 | 30 | 20.0 | 50.5 | 35 | 6.5 | |
| 4.5 | 15 | 79.5 | 67.5 | 55.2 | 28.5 | 55.3 | 25 | 72.8 | 24.8 | ||
| 45 | 204.2 | 202.5 | 63.9 | 28.5 | 90.3 | 30 | 23.1 | 57 | 40 | 6.9 | |
| 5 | 15 | 88.4 | 75 | 65.3 | 33 | 60.3 | 25 | 79.7 | 30 | ||
| 45 | 226.9 | 225 | 66.7 | 33 | 90.3 | 30 | 25.3 | 59.2 | 40 | 7.5 |
Teipiwch-B 1:3.5
| M | Z | De | Dp | H | F | d | D | V | L | Lm | S |
| 1.5 | 16 | 28.1 | 24 | 24 | 12 | 20.3 | 8 | 30.0 | 11.5 | ||
| 56 | 84.5 | 84 | 34.8 | 12 | 45.3 | 14 | 8.2 | 32 | 25 | 2.8 | |
| 2 | 16 | 37.5 | 32 | 30.9 | 16 | 25.3 | 8 | 40.1 | 14.1 | ||
| 56 | 112.6 | 12 | 37.1 | 16 | 55.3 | 16 | 10.9 | 33.3 | 25 | 3.8 | |
| 2.5 | 16 | 46.8 | 40 | 38.9 | 20 | 32.3 | 14 | 50.1 | 17.9 | ||
| 56 | 140.8 | 140 | 44.4 | 20 | 60.3 | 20 | 13.6 | 40 | 30 | 4.4 | |
| 3 | 16 | 56.2 | 48 | 49.9 | 24 | 40.3 | 16 | 60.1 | 24.9 | ||
| 56 | 169.0 | 168 | 52.7 | 24 | 80.3 | 25 | 16.3 | 47.5 | 35 | 5.2 | |
| 3.5 | 16 | 65.6 | 56 | 52 | 25 | 45.3 | 20 | 73.0 | 25.5 | ||
| 56 | 197.1 | 196 | 55.1 | 25 | 80.3 | 25 | 19.9 | 49.1 | 35 | 6 |
Teipiwch-B 1:4
| M | Z | De | Dp | H | F | d | D | V | L | Lm | S |
| 1.5 | 15 | 26.70 | 22.5 | 23 | 11 | 20.3 | 8 | 34.0 | 11.7 | ||
| 60 | 90.40 | 90.0 | 34 | 11 | 50.3 | 16 | 8.0 | 31.2 | 25 | 2.8 | |
| 2 | 15 | 35.60 | 30.0 | 31 | 16 | 25.3 | 8 | 44.0 | 14.4 | ||
| 60 | 120.60 | 120.0 | 37.6 | 16 | 60.3 | 16 | 10.4 | 34.2 | 25 | 3.4 | |
| 2.5 | 15 | 44.50 | 37.5 | 38.1 | 19 | 32.3 | 14 | 55.9 | 18.4 | ||
| 60 | 150.70 | 150.0 | 44.8 | 19 | 60.3 | 20 | 13.2 | 40 | 30 | 4.8 | |
| 3 | 15 | 53.30 | 45.0 | 48.1 | 23 | 40.3 | 16 | 66.9 | 24.5 | ||
| 60 | 180.80 | 180.0 | 53.2 | 23 | 80.3 | 25 | 15.8 | 48.2 | 35 | 5 | |
| 3.5 | 15 | 62.20 | 52.5 | 52.1 | 26 | 45.3 | 20 | 78.9 | 25.1 | ||
| 60 | 211.00 | 210 | 60.4 | 26 | 90.3 | 30 | 18.6 | 54.4 | 40 | 6 | |
| 4 | 15 | 71.10 | 60.0 | 55.1 | 30 | 50.3 | 20 | 89.9 | 23 | ||
| 60 | 241.10 | 240.0 | 60.8 | 30 | 90.3 | 30 | 21.2 | 53 | 40 | 7.8 | |
| 4.5 | 15 | 79.97 | 67.5 | 57 | 32 | 52.3 | 20 | 102.9 | 23 | ||
| 60 | 271.24 | 270.0 | 62 | 32 | 90.3 | 30 | 24.3 | 53.5 | 40 | 8.5 | |
| 5 | 15 | 88.80 | 75.0 | 62 | 34 | 55.3 | 20 | 115.7 | 25 | ||
| 60 | 301.30 | 300.0 | 65 | 34 | 90.3 | 30 | 27.0 | 55 | 40 | 10 |
